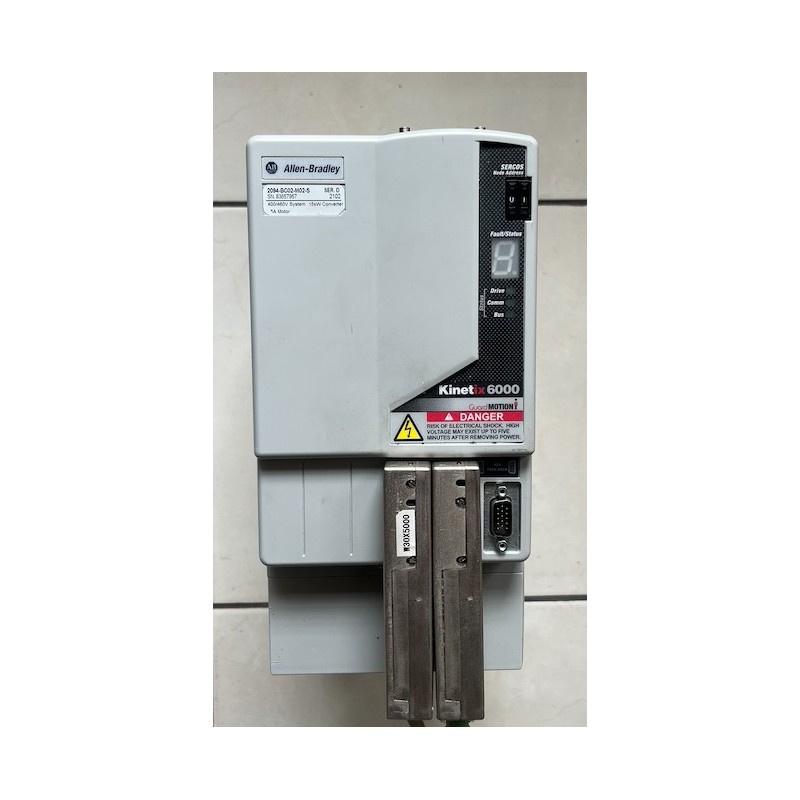

ALLEN BRADLEY 2094-BC02-M02-S KINETIX 6000

Key Specifications:

• Input Voltage: Three-phase AC input ranging from 324 to 528 V RMS, with a nominal voltage of 360 to 480 V RMS.

• Input Frequency: 47 to 63 Hz.

• Continuous Output Current: 15 A.

• Continuous Output Power to Bus: 15 kW.

• Peak Output Power to Bus: 30 kW for Series A drives; 37.5 kW for Series B, C, and D drives.

• Efficiency: 97%.

• Safety Feature: Incorporates Safe Torque Off (STO) functionality.

Features:

• Integrated Design: Combines the functions of a converter and inverter, reducing the need for separate modules and saving panel space.

• High Efficiency: Operates at 97% efficiency, ensuring minimal energy loss during operation.

• Safety Compliance: Equipped with Safe Torque Off (STO) to prevent unintended motor rotation, enhancing operational safety.

• Compatibility: Designed to work seamlessly with other components in the Kinetix 6000 series, facilitating scalable multi-axis motion control systems.

Applications:

The 2094-BC02-M02-S IAM is ideal for various industrial applications, including:

• Packaging machinery.

• Material handling systems.

• Conveyor systems.

• Automated assembly lines.

• Robotics.
