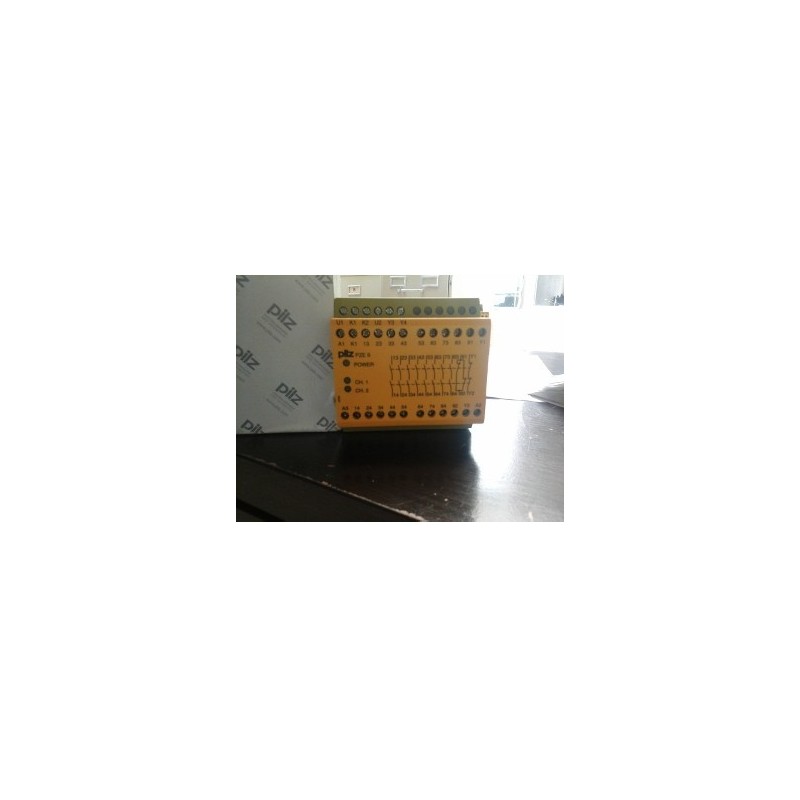

The PZE 9 operates as an add-on device without delay-on de-energization, driven by a base unit (e.g., an emergency stop relay). When operating voltage is supplied, the "POWER" LED illuminates, indicating readiness. It supports single or dual-channel input operation, allowing for versatile integration into existing safety systems. The module is compatible with a 24 V DC power supply and features plug-in terminal connections with either spring-loaded or screw terminals, enhancing installation flexibility. It complies with international safety standards, including EN 60204-1, EN 62061, and EN ISO 13849-1, ensuring high reliability in safety-critical applications.
Features:
- Contact Expansion: Increases the number of safety contacts available for control devices.
- Safety Contacts: Eight NO safety contacts for reliable disconnection of safety circuits.
- Auxiliary Contact: One NC auxiliary contact for status monitoring.
- Input Operation: Supports single or dual-channel configurations.
- Power Supply: Operates with 24 V DC, accommodating various control system requirements.
- LED Indicators: Displays channel status and monitors supply voltage.
- Terminal Connections: Features plug-in terminals with spring-loaded or screw options for versatile usage.
- Standards Compliance: Meets EN 60204-1, EN 62061, and EN ISO 13849-1 standards for safety-related applications.
