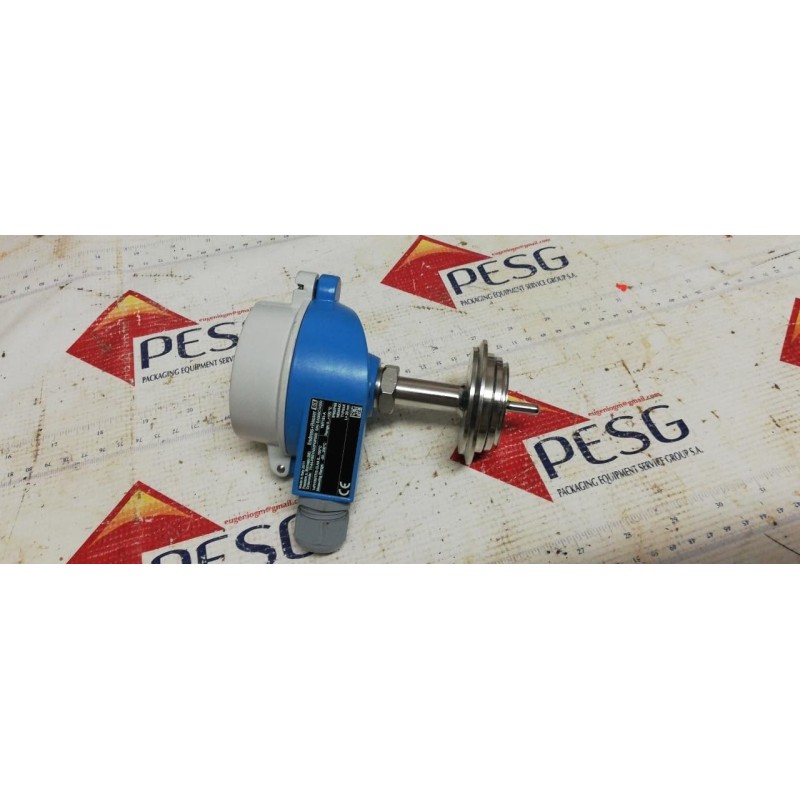

This assembly combines the iTEMP® TMT181 temperature head transmitter with a TR44 RTD (Resistance Temperature Detector) sensor. The TMT181 transmitter is a universal, PC-programmable device that converts various input signals from resistance thermometers (RTDs), thermocouples (TCs), resistance, and voltage transmitters into a scalable 4 to 20 mA analog output signal. It offers high accuracy across the entire ambient temperature range and features galvanic isolation for enhanced signal integrity. The TR44 RTD sensor provides precise temperature measurements, making this assembly suitable for a wide range of industrial processes.
Features:
- Transmitter Model: TMT181-A
- Sensor Model: TR44-FB5YAS2PGP000
- Input Types: RTD, TC, resistance, and voltage signals
- Output Signal: 4 to 20 mA analog
- Configuration: PC-programmable
- Accuracy: High accuracy over the entire ambient temperature range
- Isolation: Galvanic isolation for signal integrity
- Installation: Designed for installation in a sensor head (Form B)
- Approvals: CE, UL recognized component, marine approval (GL), Ex certifications (ATEX, FM, CSA)
