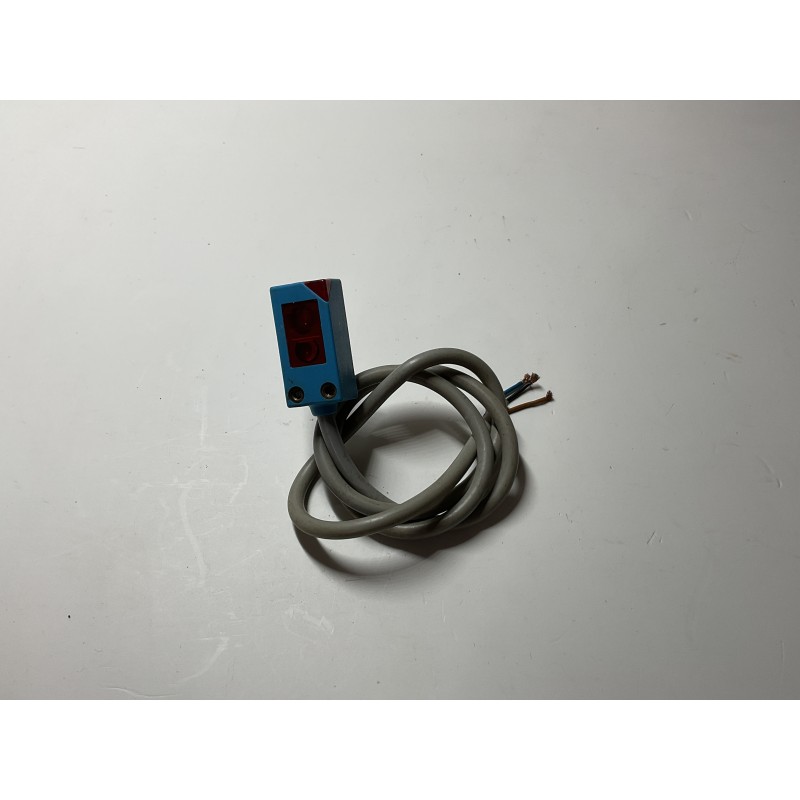

SICK WT4-2P132 Photoelectric Sensor

The SICK WT4-2P132 photoelectric sensor utilizes background suppression technology to accurately detect objects within a sensing range of 4 mm to 130 mm, minimizing false detections from background objects. It emits visible red light and features a PNP switching output with light switching mode. The sensor operates on a supply voltage of 10 V DC to 30 V DC and has a response time of less than 500 µs, ensuring rapid detection. Its compact rectangular housing, made of durable ABS plastic, allows for easy integration into various industrial setups. The sensor is equipped with a 2-meter cable for flexible installation and has an IP67 enclosure rating, providing protection against dust and water ingress.

Features:

• Sensing Range: 4 mm to 130 mm
• Light Source: Visible red LED
• Switching Output: PNP, light switching
• Response Time: < 500 µs
• Supply Voltage: 10 V DC to 30 V DC
• Connection Type: 2-meter cable
• Housing Material: ABS plastic
• Enclosure Rating: IP67
• Operating Temperature: -40 °C to +60 °C
