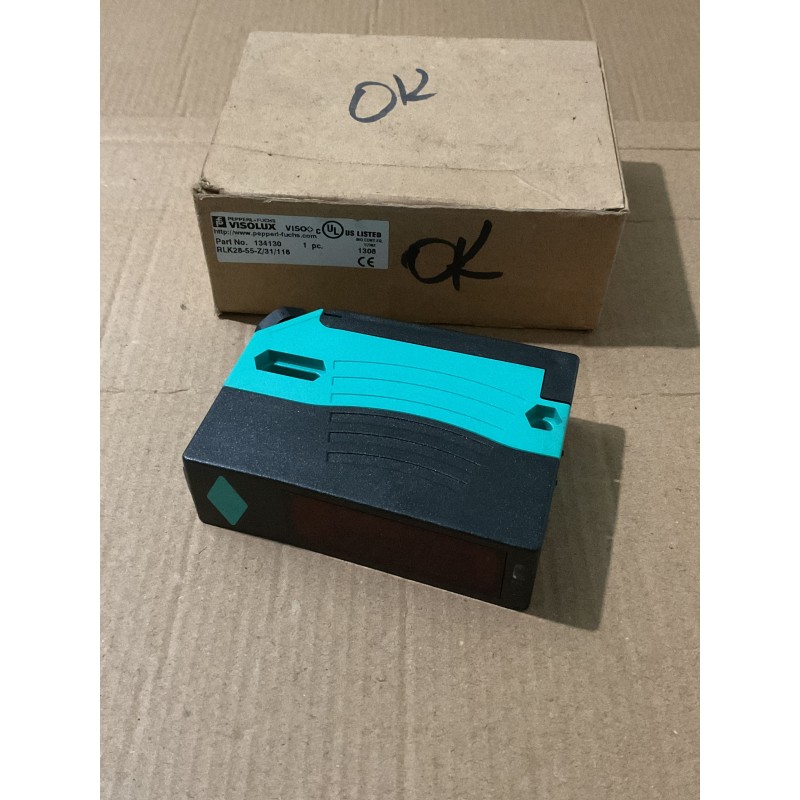

Pepperl+Fuchs VISOLUX RLK28-55-Z/31/116 Sensor

The RLK28-55-Z/31/116 sensor operates by emitting a modulated visible red light beam, which is reflected back to the sensor by a reflector. The presence of an object in the detection path interrupts the light beam, triggering the sensor's output. It features a polarization filter to prevent false triggering from shiny surfaces. The sensor offers a detection range up to 17 meters and includes programmable time functions such as ON delay (GAN), OFF delay (GAB), and one-shot (IAB), enhancing its versatility in various applications. The device is housed in a robust ABS plastic enclosure with an IP67 protection rating, ensuring durability in harsh industrial environments.

Features:

• Detection Range: 0 to 17 meters
• Light Source: Modulated visible red LED
• Output Type: Relay, 1 alternator
• Switching Voltage: Up to 250 V AC/DC
• Switching Current: Up to 2 A
• Switching Frequency: 25 Hz
• Operating Voltage: 12 to 240 V AC/DC
• Housing Material: ABS plastic
• Protection Rating: IP67
• Programmable Time Functions: GAN, GAB, IAB, GAN-IAB, GAN-GAB
• Operating Temperature Range: -30°C to +60°C
• Dimensions: 88 mm (H) x 25.8 mm (W) x 65.5 mm (D)
• Weight: Approximately 112 grams
