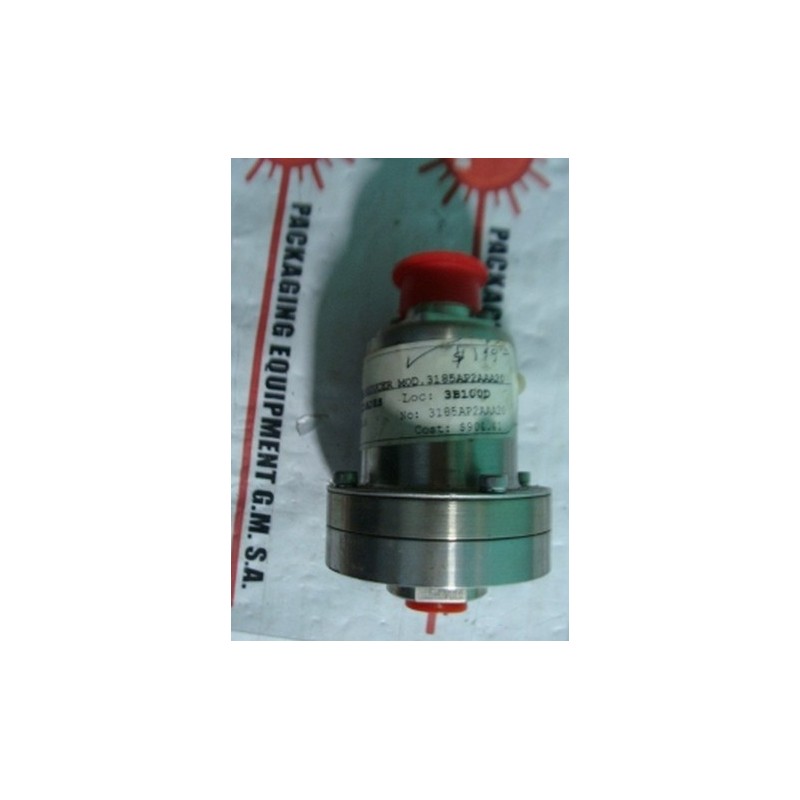

Viatran 3185AP2AAA30 Pressure Transmitter

The Model 318 pressure transmitter is designed to deliver accurate and reliable pressure measurements across a wide range of applications. Its all-stainless-steel construction ensures durability and resistance to corrosion, while the cleanable pressure cavity facilitates maintenance. The transmitter features a shunt calibration circuit for easy calibration without the need for an external pressure source.

Features:

• Pressure Ranges: Available from 0-5 PSI up to 0-15,000 PSI in various formats, including gauge (PSIG), absolute (PSIA), vacuum (PSIV), and differential (PSID).
• Output Signal: 4-20 mA (Model 318).
• Accuracy: Non-linearity of ≤0.15% FSO for ranges 50-10,000 PSI; ≤0.25% FSO for ranges 5-40 PSI and 15,000 PSI.
• Construction: All stainless steel for enhanced durability.
• Temperature Compensation: Compensated temperature range from 70°F to 170°F (-56°C to 76°C).
• Response Time: ≤5 milliseconds to reach 90% FSO.
• Electrical Connection: Standard options include various connectors and cable lengths.
• Pressure Connection: Available with different pressure port configurations to suit specific application requirements.

Applications:

• Test Stands: Ideal for pressure measurement in testing equipment.
• Engine and Brake Testing: Suitable for monitoring pressures in automotive and aerospace testing.
• Leak Detection: Effective in systems requiring precise pressure monitoring to detect leaks.
• Hydraulic Systems: Applicable in monitoring and controlling hydraulic pressures.
• Aerospace and Ground Support: Used in various aerospace applications requiring reliable pressure measurement.
• Laboratory and Research: Suitable for experimental setups needing accurate pressure data.
• Die Casting and Rolling Mills: Applicable in industrial processes involving high-pressure measurements.
