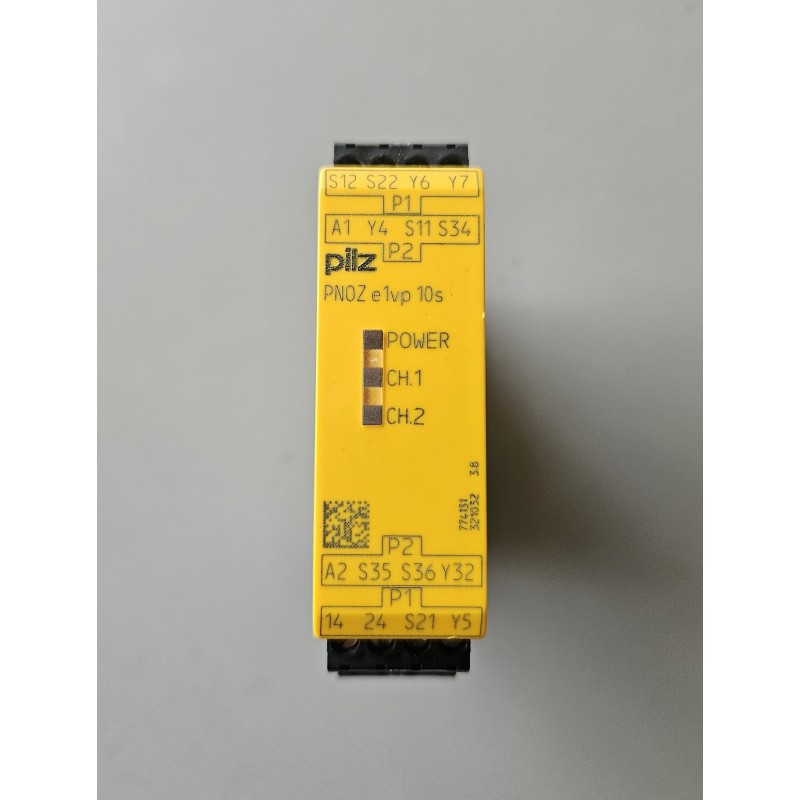

Pilz PNOZ e1vp 10s Safety Relay – Reliable E-STOP and Safety Gate Monitoring
  • Pilz PNOZ e1vp 10s Safety Relay – Reliable E-STOP and Safety Gate Monitoring
  • Pilz PNOZ e1vp 10s Safety Relay – Reliable E-STOP and Safety Gate Monitoring

Pilz PNOZ e1vp 10s Safety Relay

PNOZ e1vp 10s
PILZ

The Pilz PNOZ e1vp 10s is a standalone safety relay designed to monitor safety functions such as emergency stop (E-STOP) and safety gates. It features two safety outputs and one auxiliary output, providing reliable safety control in industrial applications.

$200.00
Quantity
Last items in stock
2 Items

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

Pilz PNOZ e1vp 10s Safety Relay
  • Use dot instead of comma

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

The PNOZ e1vp 10s safety relay is engineered to ensure the safe interruption of safety circuits. It supports single or dual-channel wiring configurations, with or without detection of shorts across contacts. The device offers both automatic and monitored start functions, enhancing its versatility in various safety applications. Equipped with plug-in screw terminals, it facilitates straightforward installation and maintenance. The relay operates with a supply voltage of 24 V DC and has a compact width of 22.5 mm, making it suitable for integration into control panels with limited space.

Features:

  • Inputs: Supports 1 or 2-channel wiring with or without short-circuit detection between contacts.
  • Outputs: Provides 2 safety outputs and 1 auxiliary output in semiconductor technology.
  • Start Function: Offers both automatic and monitored start options.
  • Supply Voltage: Operates at 24 V DC.
  • Compact Design: Width of 22.5 mm for space-saving installation.
  • Terminal Type: Features plug-in screw terminals for easy wiring.
  • Safety Functions: Monitors E-STOP and safety gates.
Product Details
PNOZ e1vp 10s
774131
2 Items
Used
